Description

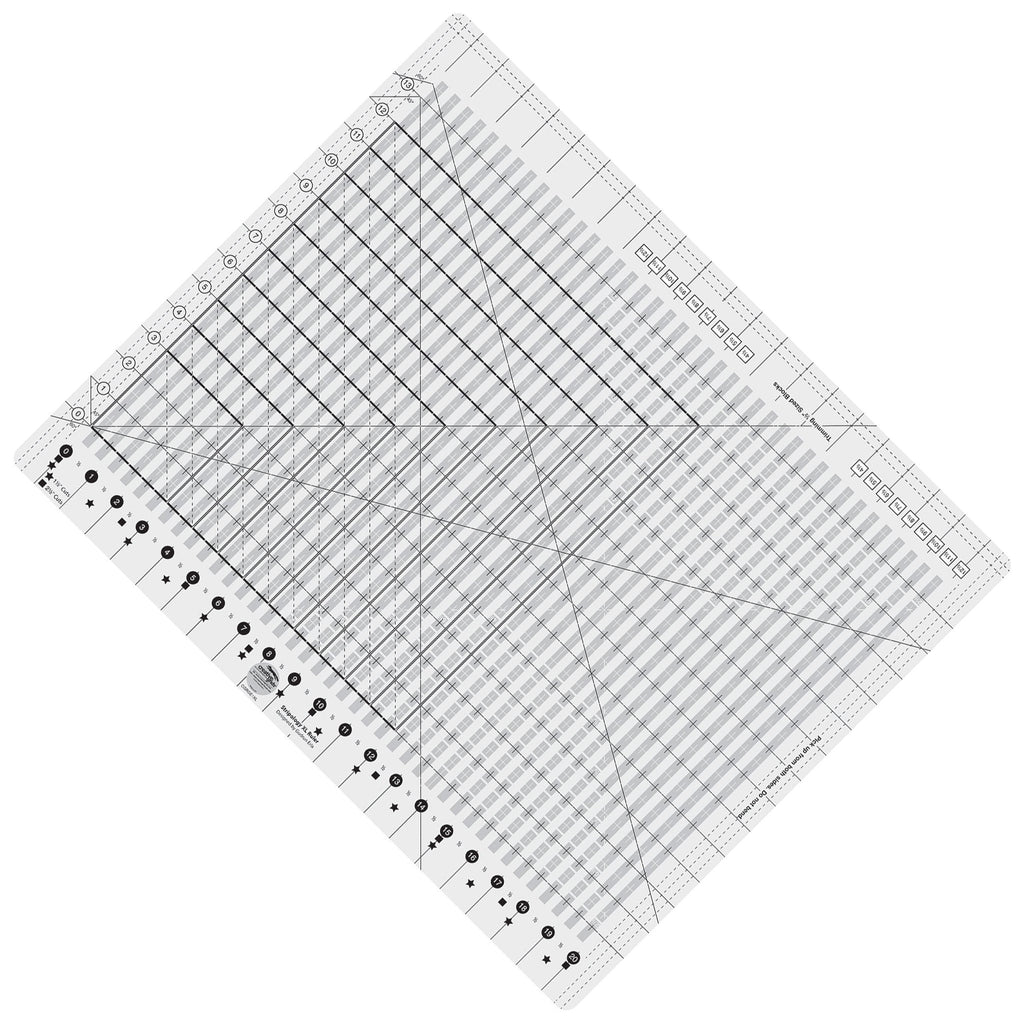

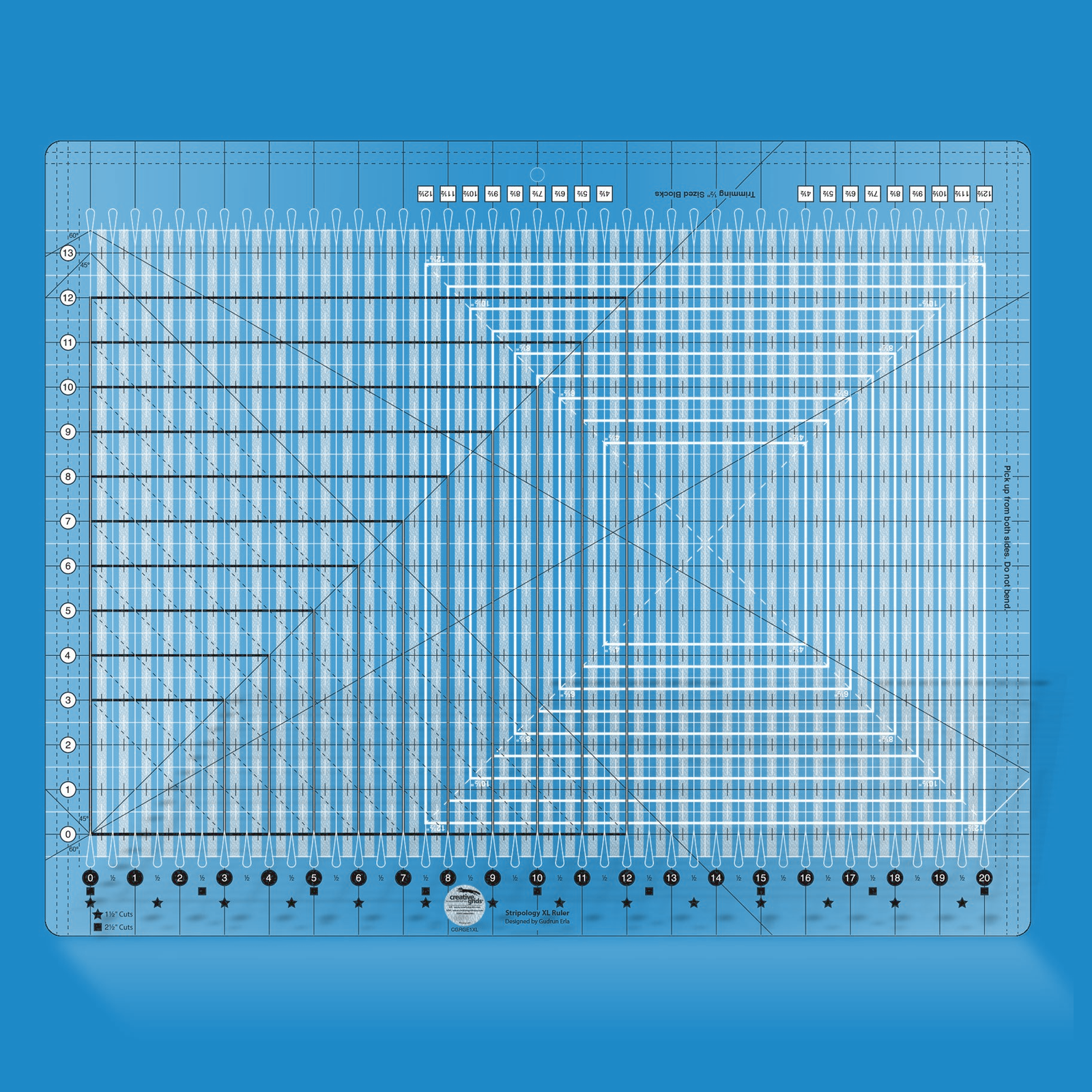

Cut strips from folded yardage through slits every 1/2 inch without moving the ruler between cuts, then subcut them, cut 45 and 60 degree diamonds and triangles, and square blocks up to 12 1/2 inches, all with one 17 3/4 x 22 inch ruler. Stars under the slits mark 1 1/2 inch cuts and squares mark 2 1/2 inch cuts, so you find the right slit without doing math.
What's Included
The Stripology XL ruler and an illustrated instructions sheet; the QR code on the sheet links to the how-to video. This listing does not include fabric, rotary cutter, and cutting mat.
How to Use It
Fold the yardage in half lengthwise so it lies in four layers, with the fold toward you and the selvages and bolt fold together. Align the bottom fold with the 0 line and keep the raw edge to the left of the 0 slit. Drop the rotary cutter into the teardrop at the bottom of a slit and cut upward: first through the 0 slit to square the edge, then through the slits for your strip width. For widths in 1/4 inch steps, make the first cuts, slide the ruler right, line the cut edge up with the 1/4 inch dotted line left of the 0 slit, and cut again; the chart in the instructions lists the slits for strips from 1 1/4 to 3 3/4 inches. Layer strips under the ruler to subcut them into squares and rectangles, or line the horizontal lines up with the seams of a strip-pieced unit and cut it the same way.
To square a block in whole inches up to 12 inches, center the black square of that size on the block, cut through the 0 slit and the slit for the size, turn the block 90 degrees, and cut the other two sides. For half-inch sizes up to 12 1/2 inches, turn the ruler 180 degrees, center the white square of that size on the block, and cut through the two slits labeled with that size. The slits help hold the block in place because it does not rock on its seams. Line the 45 or 60 degree line up with the bottom of a strip to cut diamonds, and rotate to the other 60 degree line to cut 60 degree triangles. The diagonal lines from the 0 and 20 slits cut stacked squares on point into triangles; the instructions suggest the 0 side for left-handed quilters and the 20 side for right-handed. Dotted lines 1/4 and 1/2 inch in from the top and side edges help you trim a quilt after quilting.
Lift the ruler with both hands. The instructions warn that twisting or bending the acrylic can break it, and the ruler itself prints "Pick up from both sides. Do not bend." The ruler slides on the fabric while you position it; pressing down engages the grip.
Perfect For Cutting
- Strips from folded yardage in 1/2 inch widths, and in 1/4 inch widths with a second pass
- Squares and rectangles from layered strips, and strip-pieced units
- 45 and 60 degree diamonds and 60 degree triangles from strips
- Squaring blocks up to 12 1/2 inches, fussy cutting, and trimming embroidered blocks, where the ruler flexes over the embroidery
Fit and Limits
The slits run every 1/2 inch from 0 to 20. Widths in 1/4 inch steps take a second pass with the ruler moved 1/4 inch. The smallest black square is 3 inches and the smallest labeled white square is 4 1/2 inches; for small units, the Stripology Squared Mini squares blocks from 2 inches up to 6 1/2 inches. At 17 3/4 x 22 inches the XL is the largest Stripology ruler; the Stripology Squared uses the same 14 3/4 inch slits on a 14 1/2 x 17 3/4 inch ruler.
Product Details
- Brand: Creative Grids
- Item #: CGRGE1XL
- Designer: Gudrun Erla
- Category: Quilting Rulers
- Type: Ruler
- Total Size: 17 3/4 x 22 inches
- Slit Length: 14 3/4 inches
- Slits: Every 1/2 inch, 0 to 20
- Squares Blocks Up To: 12 1/2 inches
- Material: Acrylic with non-slip grip

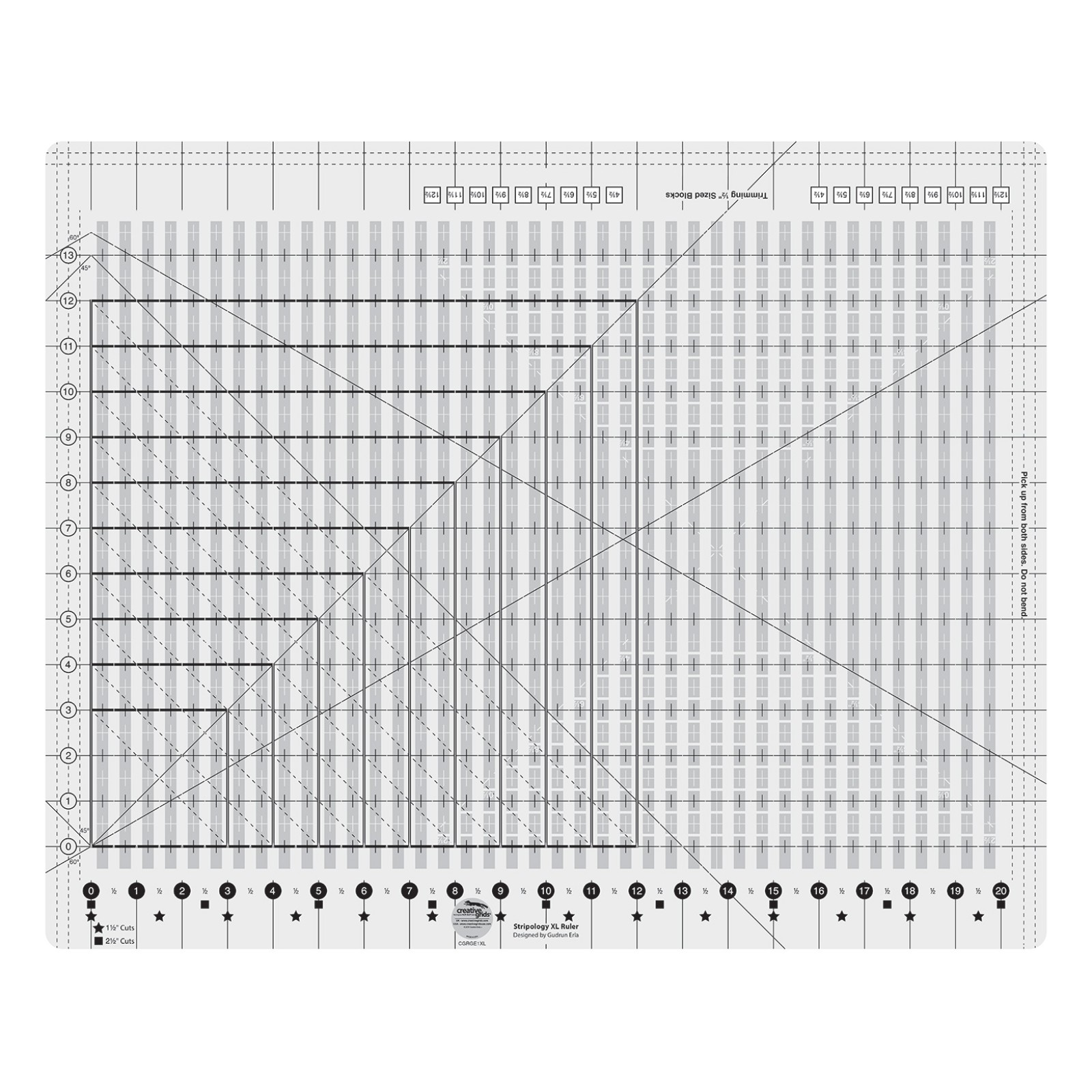

- Markings: Whole, half, and quarter inch increments; 1/4 and 3/4 inch cut markings; 45 and 60 degree lines; stars for 1 1/2 inch cuts and squares for 2 1/2 inch cuts; dotted lines 1/4 and 1/2 inch from the edges
- Includes: Illustrated instructions; the QR code on the instructions links to the how-to video
- Made in the USA
Need a Different Stripology Ruler?
The Stripology system comes in four rulers, all by Gudrun Erla: this XL, the Stripology Squared, the Stripology Squared Mini, and the Stripology Quarters Mini. See the Creative Grids Stripology Rulers collection for all four.
Specifications
| Brand | Creative Grids |
| Craft | Quilting |
| Designer | Gudrun Erla |
| Product Type | Ruler |
