Updated October 31, 2026. This post first ran in February 2024, when the Glow Ruler was new.
Ruler lines can disappear against dark fabric or a busy print, and poor light or tired eyes make it worse.
The Carolina Moore Glow Ruler lights its lines from inside the acrylic, so they show on light and dark fabric alike. It is a 6-inch square ruler, made in a right-handed and a left-handed layout.
How the Light Reaches the Lines
LEDs sit in a metal power bar along the bottom edge of the ruler. When you press the button on the bar, their light travels sideways through the acrylic sheet.
Light inside a smooth sheet of acrylic bounces between the two faces until it reaches a rough spot. The ruler's markings are etched into the acrylic, so each line is a rough spot that lets the light out and glows. The acrylic between the lines stays clear, so you still see the fabric.
Because the lines give off their own light, they do not depend on contrast with the fabric under them. Printed lines are a fixed color, which shows on some fabrics and disappears on others.
With the light off, the Glow Ruler works as an ordinary 6-inch square ruler.
What's on the Ruler

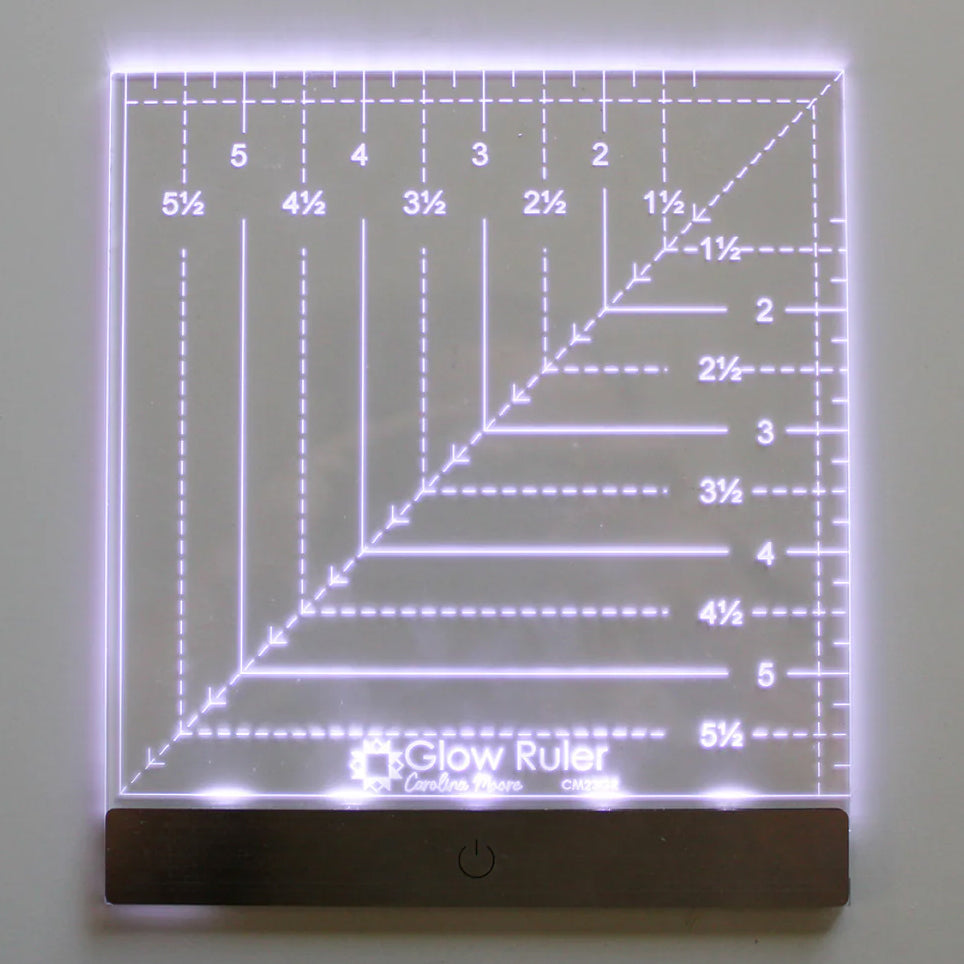

The measuring area is 6 x 6 inches. Whole-inch lines are solid and half-inch lines are dashed, numbered 1 1/2 through 5 1/2, with a 45-degree diagonal from the starting corner and quarter-inch tick marks along the two cutting edges. The outer edges of the acrylic are the 6-inch lines.
The markings are in inches only. With the power bar, the whole ruler measures 6 1/8 x 6 7/8 inches.
The battery is built in and charges through the USB-C port on the right end of the bar. The ruler comes with a USB-A to USB-C cable and no wall charger. A full charge runs the light for about 6 to 8 hours.
Right-Handed and Left-Handed Layouts
Both layouts have the power bar on the bottom and the same markings, lights, and battery. Only the starting corner changes.
On the right-handed ruler, the measurements start at the top-right corner, and you cut along the top and right edges.
On the left-handed ruler, the measurements start at the top-left corner, and you cut along the top and left edges.
Turning It On
Hold the ruler and pinch the power bar between your thumb and a finger behind it to press the button, which takes a firm press. Then set the ruler on the fabric.
Squaring Up a Half-Square Triangle
These steps are for the right-handed ruler. On the left-handed ruler, read "left" for "right."
- Set the 45-degree diagonal on the seam, with the unit extending past the ruler's top and right edges and the lines for the size you are trimming to inside the unit.
- Trim along the top and right edges.
- Turn the unit around. Line up the two cut edges on the same size lines, keep the diagonal on the seam, and trim the top and right edges again.
Without the diagonal, the same two-pass trim squares up any unit cut up to 6 inches.
Fussy Cutting a Motif
Center the motif inside the lit lines for the size you want, with fabric extending past the ruler's top and right edges, and cut along those two edges. Turn the fabric, line up the cut edges on the same size lines, and cut the other two sides.
Keeping It From Sliding
The back of the Glow Ruler has no grip surface. To help hold it firmly in place while you cut, you can add grip dots to the back.
No-Slip Grip Dots by The Gypsy Quilter come 24 to a sheet, and each one is a large clear ring with a separate center dot, so one sheet gives 48 grips. They add a little thickness, so the ruler sits slightly above the fabric.
What It Does Not Do
The Glow Ruler measures units cut up to 6 inches, which finish at 5 1/2 inches. Cutting strips from yardage or squaring a block larger than 6 inches takes a larger ruler.
Quarter inches appear only as tick marks along the two cutting edges, not as full lines across the ruler. The light runs on the built-in battery, so it needs recharging after 6 to 8 hours of use.
What Owners Report
Of the 18 owner reviews we read in October 2026, averaging 4.9 of 5 stars, four mention squaring up or trimming blocks, and four mention ruler lines that had become hard to see. Others mention seeing the lines on dark fabric and a battery that holds its charge.
One of our customers, Vicki M., on the right-handed Glow Ruler: "It works really well on all colors. Good product."
The Bottom Line
Trimming and squaring up units 6 inches and under, on dark fabric, busy prints, or in poor light? The Glow Ruler's lit lines show in all three.
Cutting strips or squaring larger blocks? Use a larger ruler for that work.
If you can already see your ruler lines clearly on the fabrics you cut, a plain 6-inch square does the same measuring.
